LG UK660H and UK762H Hospitality TVs: The Comprehensive Guide for Hotels

The hospitality industry is rapidly transitioning from passive screens to interactive smart platforms optimized for Bring Your Own Device (BYOD), secure content streaming, and cloud configuration management.

---

The latest LG UK660H and LG UK762H enterprise series align perfectly with modern guest expectations. Powered by the specialized LG Pro:Centric ecosystem (Direct/Cloud), they support native Google Cast and Apple AirPlay, provide immediate compatibility with dominant Over-The-Top (OTT) applications like Netflix*, and deliver a sleek hospitality design backed by robust operational locks, automated guest data sanitization (auto-wipe), and rapid cloning features.

*Application availability is subject to geographical regions and custom hospitality server configurations.

---

Technical Baseline: Critical TV Features for Modern Properties

• Secure BYOD Wireless Casting: Integrated Apple AirPlay and Google Cast utilizing instant on-screen QR-code pairing, persistent session tracking, and absolute data clearance at checkout.
• Cloud-Native Content and Configuration Management: Centralized orchestration via Pro:Centric Direct or Pro:Centric Cloud to launch customized branded welcome menus, operational automations, and targeted on-screen advertising.
• Hospitality Hardware Constraints: Hardware Hotel Mode toggles, automated USB settings cloning, Wake-on-LAN (WoL), and SNMP remote diagnostic tracking to drop property maintenance overhead.
• Premium Visual Standards: Impeccable 4K UHD resolutions framed by minimalist bezels to mirror premium consumer home entertainment aesthetics.

While the UK660H serves as a high-performing baseline for mass property deployments, the premium UK762H series steps up visual standards by introducing proprietary LG NanoCell technology to deliver maximum color purity and color accuracy.

---

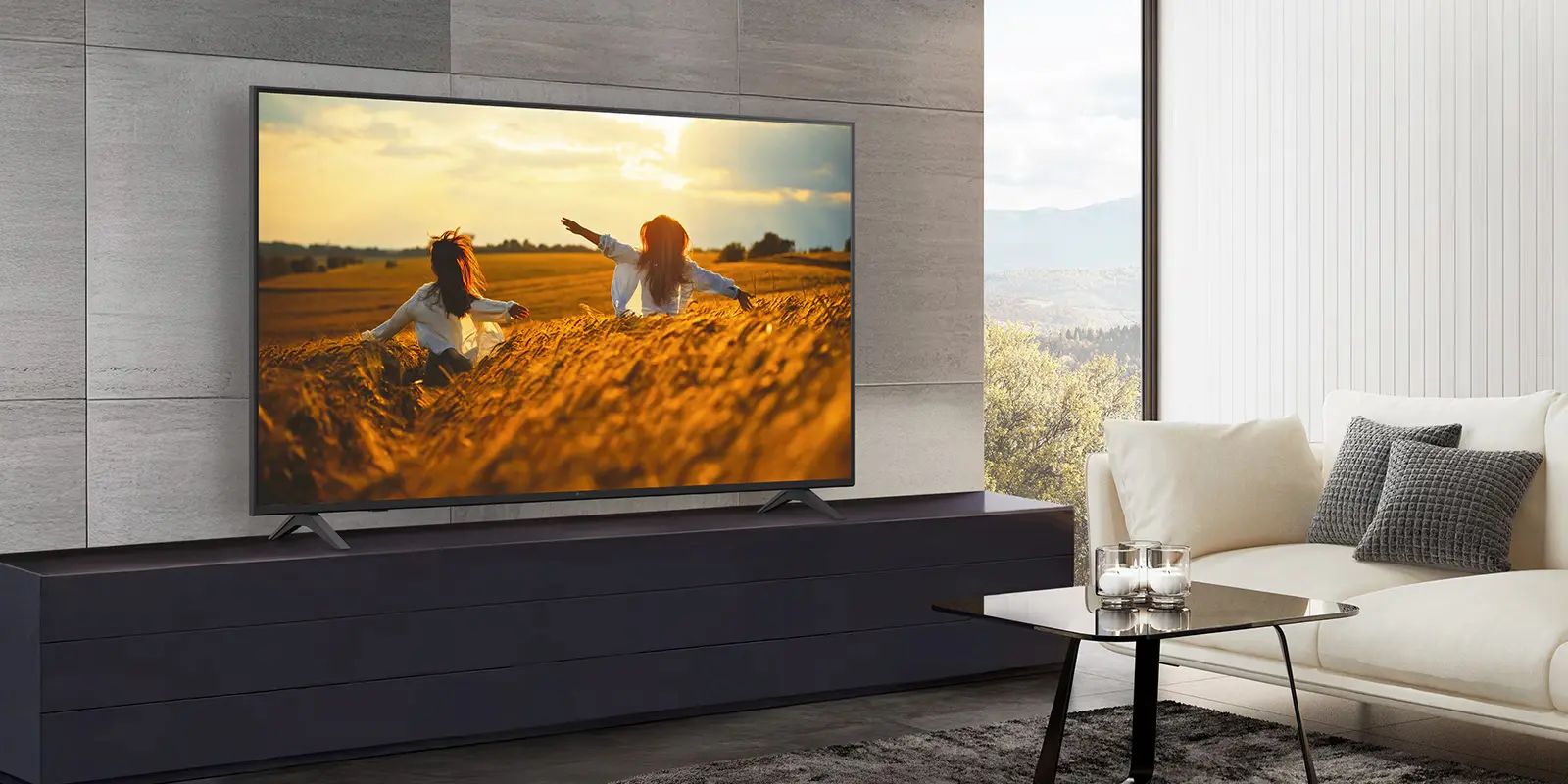

1. LG UK660H — 4K UHD, Pro:Centric, and Comprehensive Smart Features

Target Profile: Properties seeking a rugged, highly uniform 4K UHD smart display anchor equipped with the full suite of hospitality management protocols and secure casting interfaces at a balanced Total Cost of Ownership (TCO).

Key Architectural Strengths:

• Native 4K UHD (3840×2160) Resolution: Complemented by active HDR10 Pro rendering and an ultra-slim commercial profile.
• Pro:Centric Server Compatibility: Seamless execution of centralized welcome interfaces, real-time message broadcasting, and weather/local attraction modules.
• Native Google Cast and Apple AirPlay Integration: Eliminates external physical streaming stick overhead and secures guest credentials via checkout-triggered automation wipes.
• Commercial-Grade App Distribution: Ready for local OTT deployments (Netflix, YouTube, LG Channels) structured across a closed hotel infrastructure.

---

2. LG UK762H — Premium NanoCell Purity + Integrated SoftAP

Target Profile: Premium 4- and 5-star properties, luxury resort suites, executive lounges, and high-tech conference spaces where visual superiority and structural deployment agility represent core priorities.

Key Architectural Strengths:

• Proprietary NanoCell Display Panel: Utilizes integrated nanoparticles to filter out impure, overlapping light wavelengths, creating profound color purity and precision color reproduction that outclasses standard commercial LCD screens.
• Wireless-In SoftAP Technology: Transforms the display into a localized software Access Point inside the guest room, dramatically simplifying network architecture during historic renovations by cutting separate wall data drops.
• Unified Hospitality Capabilities: Inherits the absolute entirety of the UK660H series’ Pro:Centric Cloud management, native BYOD streaming layers, and automated data purging protocols while operating on a high-tier display engine.

---

Enterprise Specification Comparison: UK660H vs. UK762H

Engineering Vector	LG UK660H Series	LG UK762H Series
Display Panel Architecture	Standard Commercial LCD/LED 4K UHD	LG NanoCell IPS Technology (Advanced Purity)
Dynamic Video Rendering	HDR10 Pro	HDR10 Pro + Premium Color Engine
Pro:Centric Infrastructure	✓ Pro:Centric Direct / Cloud	✓ Pro:Centric Direct / Cloud
BYOD Wireless Cast Interface	✓ Google Cast & Apple AirPlay	✓ Google Cast & Apple AirPlay
Guest Data Privacy Routine	Automated Session Erase at Checkout	Automated Session Erase at Checkout
Localized Networking Layer	Standard Wired/Wireless Clients	Wireless-In SoftAP (In-Room AP Bridging)
Primary Deployment Focus	Standard & Family Rooms — Maximized TCO	Luxury Suites, VIP Spaces, Conference Rooms

---

Room Scoping and Strategic Hardware Allocation

Standard and Family Accommodations (UK660H | 43″ – 55″)

Delivers a uniform smart framework, automated USB setting deployment, and a seamless BYOD experience for families, keeping hardware costs highly optimized.

Executive Suites and Premium Rooms (UK762H | 55″ – 75″)

Leverages the dramatic visual impact of the NanoCell panel to capture a true luxury aesthetic. The enhanced display contrast ensures superior image legibility even in sunlit room designs.

Boardrooms and VIP Event Lounges (UK762H | 65″ – 75″)

Guarantees absolute color fidelity for corporate presentation materials, corporate branding assets, and high-resolution video conferencing.

---

Deployment Best Practices for Hotel IT Engineers

• VLAN Separation and Multicast Mapping: Ensure your hospitality TV network is securely sandboxed into a dedicated Video/IPTV VLAN. Enable IGMP Snooping on your edge switches to safely handle Pro:Centric streaming traffic without flooding guest Wi-Fi paths.
• BYOD Pairing Safety Rules: Activate LG’s persistent pairing token engine. The display must generate a fresh, room-isolated QR code on the screen for each new guest check-in, preventing a guest in room 202 from casting content onto the screen in room 204.
• Environmental Lux Calibration: Both series output an optimized commercial brightness window (~300 to 330 nits). For high-glare architectural spaces with floor-to-ceiling windows, prioritize larger display sizes or implement automated motorized blackout drapes tied to the GRMS.
• Regional Hardware Variations: Ensure procurement models match localized tuner configurations (DVB-T2/C/S2 for European markets) and confirm regional app licensing rights for premium OTT applications prior to bulk staging.

---

FAQ — Frequently Asked Questions

What is the primary engineering difference between the LG UK660H and UK762H?

The core distinction lies in the display panel physics and deployment options. The UK660H features an excellent standard 4K LCD/LED matrix, while the UK762H incorporates an advanced NanoCell filter layer to achieve significantly cleaner colors and wide viewing angles. Additionally, the UK762H includes Wireless-In SoftAP to streamline room networking.

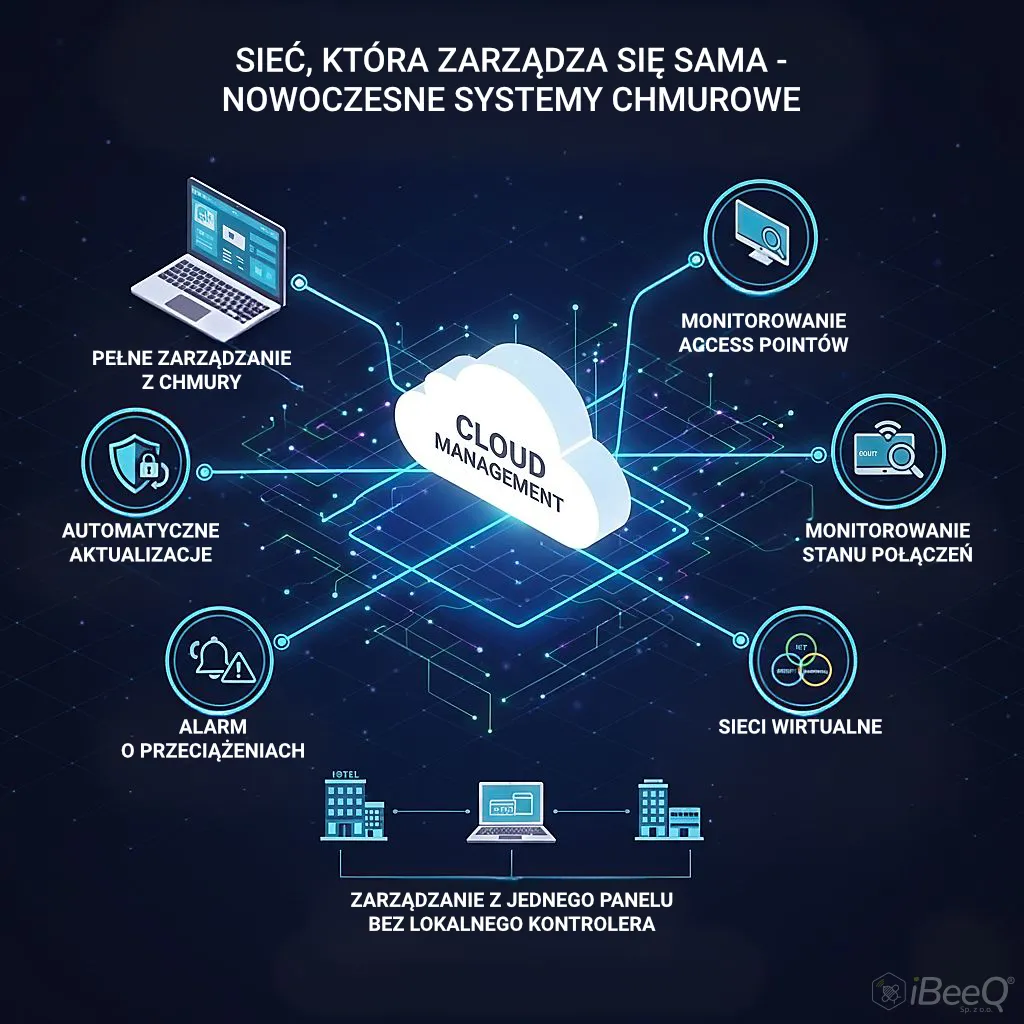

How does Pro:Centric improve a hotel’s day-to-day operations?

Pro:Centric acts as a centralized remote management console. Instead of sending tech staff to manually configure 150 individual rooms via USB keys, hotel administrators can push channel lineups, update custom firmware, broadcast real-time guest announcements, and review diagnostic codes across the entire property over the local network.

Is a guest’s personal streaming data secure on these displays?

Absolutely. Both the UK660H and UK762H lines prevent data cross-contamination via localized session-wipe parameters. When a guest casts via Apple AirPlay or Google Cast, their login credentials never leave their personal smartphone. Furthermore, when the PMS marks a room as checked-out, the Pro:Centric server commands the TV to instantly delete all cached user tokens.

Can iBeeQ handle the full deployment, mounting, and system integration for our hotel project?

Yes. iBeeQ provides a comprehensive turn-key service for hospitality properties. Our teams manage structural consulting, bulk hardware procurement, secure physical room mounting, Pro:Centric cloud configuration, local network VLAN segmentations, and automated API handshakes with legacy Property Management Systems (PMS).

---

iBeeQ supplies, installs, and configures LG hospitality TV systems across Europe — including Pro:Centric cloud setup, VLAN integration, and full PMS handshake. Contact us for a free technical consultation.
